CEW46 - TANKER HOSE Applicable Standard: EN 13765 TYPE 1 : 2010
Fluid compatibility :
Petroleum products
Industrial application :
This suction and discharge hose is specifically engineered for the transfer of petroleum products, catering to applications involving road tankers, rail tankers, and loading gantries
Temperature :
-30°C to +80°C
Product Pressure :
Low-pressure
Product Construction :

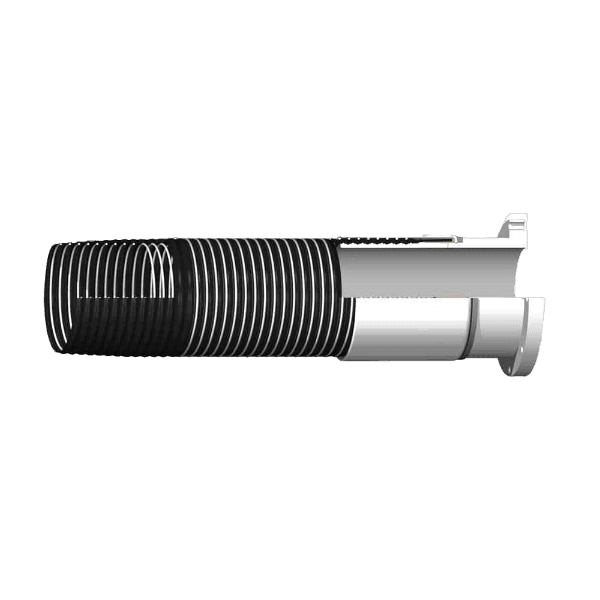

The hose is constructed using a combination of polypropylene fabric and films, complemented by a PVC-coated fabric cover. Internal and external reinforcement is provided by galvanized mild steel wires.
Item Code |  ID |  OD |  WP |  BR/r | Dash size | ||||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | psi | bar | inch | mm | ||
| CEW46-32 | 2 | 51 | 2.4 | 61 | 100 | 7 | 7.87 | 200 | -32 |
| CEW46-40 | 2-1/2 | 63 | 2.99 | 76 | 100 | 7 | 7.87 | 200 | -40 |
| CEW46-48 | 3 | 76 | 3.46 | 88 | 100 | 7 | 11.02 | 280 | -48 |
| CEW46-64 | 4 | 102 | 4.41 | 112 | 100 | 7 | 15.75 | 400 | -64 |
